Type E120 year of construction 2014
Type EU2000I year of construction 2012
Type EU2000I year of construction 2007
with moulding cassettes
for thicknesses 150mm – 500mm
Including all accessories and spare parts
Concrete Extruder Hollowcore
Production of room modules for building construction, technical modules or garages
Application examples: Up to 4-storey buildings, such as residential buildings, offices, hotels, prisons, transformer stations, water pumping stations, pressure control systems, biomass heating systems, technology and storage rooms, care homes, energy stations, wine cellars, waste and oil storage, PV technology modules
Scope of delivery:
1) Concrete room cell mould system, flexibly adjustable up to L=6.90m, W=3.81m
2) Concrete room cell mould system, flexibly adjustable up to L=9.0m, W=3.45m
3) Complete concrete room cell mould system with fixed dimensions 6000 x 2950 mm
4) Heavy-duty crane frame ROTHMUND RT 25 tonnes
5) Heavy-duty crane frame, rotating, SCHWINGHAMMER 20 tonnes
6) Steel concrete mould table, 8000 x 3500 mm
7) Mobile concrete element transport table, 8000 x 4300 mm
room modules production
ACOTEC Production Line ELEMATIC M24515
Filigran Floor Production Bed
Manufacturer: SCHWINGHAMMER
for the production of floor element halfslabs with lattice girders
finished product width 2.50m
bed length: 2 x 60m
with triangular strip 45° at the formwork edge.
Screw fastening on the floor.
Included: MRP device
for the functions measuring, cleaning, plotting
Outlines, cut-outs and positions can be plotted
Casting Beds Filigran Floor Halfslab
Column formwork with foundation footing (twin mold) L=23.50m
Very flexible adjustable formwork, mechan. manually adjustable
Length: 23,5m
Chamber size: width 0,95m, height 1m (expandable up to 1,65m, for this purpose
formwork parts are available)
Foundation base: 3m x 3m x 1,10m, footing formwork on both ends
Vibrators: 6 pieces at the base
The rest will be done with bottle vibrators.
Formwork stands on concrete foundation feet
Column Mould PREQAST
Passenger Lift Shaft MOLDS 3 sizes.
Manufacturer: NINIVE
Year of manufacture: 2011, only 2 years in use
Hydraulic adjustment
For the production of lift shaft elements for vertical storey connection
Considerable advantages of prefabrication in terms of time, costs and flexibility.
According to the customer’s plans, inserts as well as empty conduits and switch bushes
for the electrical installation can be installed according to the customer’s plans. This avoids the need for subsequent surface
installation.
Time-saving installation aids such as anchor rails, transport anchors, scaffolding sleeves
anchors etc. are already installed at the factory.
The smooth visible surfaces can be left unfinished, plastered or painted over.
Production in the factory means very accurate dimensions. Smooth formwork on the outside, short assembly times.
LIFT SHAFT MOLD 1, 1600 X 1750MM
LIFT SHAFT MOLD 2, 1600 X 1800MM
LIFT SHAFT MOLD 3, 1600 X 1950MM
Height of each mold 3,20m
Precast Lift Shaft Mold
Floor Slab Carousel
Capacity approx. 800m2/ day
Steel pallets 2,4 x 13,5 m, 42 pieces
Manufacturer Nuspl and Schwinghammer
Fully automated steel processing (FILZMOSER)
Including longitudinal wire straightening machine with hyperbolic rotor, diameter 6-14 mm
Cross wire roller straightener diameter 8 mm
Lattice girder processing, measuring and cutting equipment
Steel robot for laying bars and lattice girders
Concrete spreader, MRP plotter, Weckenmann
Curing chamber with fully automatic restacking crane VOLLERT
Vibration station SKAKO
Floor Slabs (Filigree) Carousel
HUMARBO Tilting Lay Machine PXV-3 from 2018, like new
The Tilting Lay Machine is suitable for the production of large-format components in the immediate demoulding process.
The most suitable components are bar-shaped, plate-shaped or frame-shaped.
These can be foundations, slab and floor slabs, U-shaped shells, shaft bodies, angle elements or large-format bricks.
An advantage is the high daily capacity with only one mould and two workers.
It was only used for test purposes!
The Humbarbo PXV-3 is a floor-moulding machine, which demoulds the concrete products by means of tipping on a flat floor or pallet (wood, steel). The Tilting Lay Machine is suitable for reinforced or non-reinforced products with a production length of max. 3m, a product width of 1,400mm and a product height of max. 1,100mm.
The max. load of product, mould and table is 6000kg. The max. product weight is therefore approx. 2,500kg.
HUMARBO
COOTE flooring machine
was manufactured in 2004 and was first used in January 2005.
This machine can make 150mm by 600mm precast flooring,
Moulds length is 8m.
Included is:
Casting end with 150mm mould, core extractor, turntable, oiler, concrete filler.
Pallet handler, Pallet cleaner, product unloader, 200 pallets.
1m3 skip complete with rails from mixer.
Electrical panels comprise Allen Bradley and Mitsubishi equipment.
Coote Hollow Core Floor Production
consists of 6 Laser Projectors
The system is able to display contours of different components, recesses and lattice girder separately.
Accuracy by independent Calibration of the laser projector. Fully automatic and quickly the laser projector is set up and ensures accurate projection results.
Mecoon Laser-projection-system
for a precast tilting and lifting station.
The electrically movable access aid (ladder) runs along a rail fixed to the floor.
This allows quick access to the upper end of the elements and safe work at height.
E.g. attaching to the crane, and no longer need to carry ladders for a walk.
The speed of the longitudinal movement is infinitely variable.
Installation usually along a tilt table.
Mobile access aid NUSPL
Steel edge formwork 45° chamber:
Together 944 meter steel formwork for the production of Filigree Floor Slabs, Double Walls or Solid Walls.
Steel Edge Formwork
To find out the worth of your production machine/plant send some basic information like:
Send us an e-mail to or use the Request Form below:
How much can I get for my used machine ?
Sandwich Wall Production with 4 Pallets
Precast Tables 4.60m x 6.50m
Set of 6 pieces fixed casting tables with vibrators for precast elements
Flat steel sheet and heating pipes
5 vibrators per table
consists of:
3 pieces precast casting table
Shuttering plate dimensions 4.60 x 6.50m
weight approx. 5to
1 piece precast casting table
Shuttering plate dimension 4.60 x 7.00m
Weight approx. 5to
1 piece precast casting table
Shuttering plate dimension 3.80 x 5.00m
Weight approx. 4to
1 piece precast casting table
Shuttering plate dimension 3.80 x 6.34m
Weight approx. 4to
Casting Tables
Complete Dry Cast production system includes:
– Feed Hopper
– Mould
– Mould/Core Carrier
– Pallet Transfer Conveyor
– Mould Spray Unit
– Pallet Handler and much more
Detailed Specification:
CASTING MODULE
• Mould area: 7.0 meters long x 0.600 meters wide
• Product height: 150mm
• Product weight: 1400 kg.(max)
Precast Hollow Core Floor Production System
3 pcs Tilting Table S5-750h
Year 2018
3.8m x 13.5m
max. load 750 kg/m2
2 pcs Tilting Table S5-750h
Year 2018
4.2m x 13.5m
max. load 750 kg/m2
Hydraulic Tilting Tables M24528
Filigran Floor and Twin-Wall Carousel
Manufacturer : SKAKO
Control system : OSD Schenk
Master computer: SAA
Daily output: approx. 750 – 800 sqm/day
PALLETS
80 steel pallets (moulds): Dimension: 3 x 9m and 2.5 x 14m,
Pallets are transported from station to station by roller blocks, driven by friction wheel,
Condition of the pallets: “Very good”
Complete Plant
Carousel
AAC Plant
hydraulic tilt table 16m x 3,50m
year of construction 2005
Surface in good condition, flat and even
8 vibrators BRECON
with heating pipes
3 hydraulic cylinder pairs
M21416-Tilting Table
Hollowcore Planks Production Line
for the the production of Prestressed Hollowcore Planks
Width: 1200mm (48″)
Thickness: 200/240mm (8″/10″)
Brand: ELEMATIC
Year: 2010
Condition: Very good, no wear and tear
Location: South East Asia
The plant is consisting of:
Concrete transportation shuttle EB405 E 2.0
141mtr Automation of concrete edistribution System ES
Extruder EL900E
Bedmaster EL 400/LPG
Gutter Brush for Bedmaster EL400
Casting beds EL 120/M, 600 mtr
Stressig Abutment EL234/300mtr, 5 pairs
Single stressing device EL253/16t/500mm PAUL
etc.
Hollow Core Production Line ELEMATIC
TILTING TABLE 3.3M X 15M

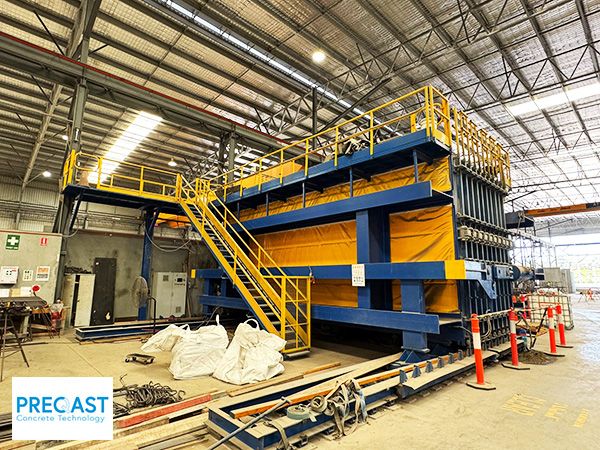

Battery 9 compartments
Battery Mold
Twin Wall Pallets Carousel
surface in good condition, flat and level
incl. vibrator, hydraulic cylinders,
hydraulic unit, some with heating pipes
M23476 12.80m x 4.50m
M23478 8.76m x 4.40m
M23480 9.35m x 4.30m
TILTING TABLE PREQAST
Included:
87 vibrators
Converter
Control
TT-Mold
Year of construction 2008
The formwork was barely used!
Support from base: 800 x 40 x 60 cm
Transition to the rejuvenation: L = 20 cm
Rejuvenated part: 500 x 24 x 60 cm
Base: 200 x 290 x 50 cm
Support: One longitudinal side formwork height (60cm) rigidly connected to the ground,
one longitudinal side hinged.
No external vibrators installed, since it was compacted by means of a vibrating bottle.
Weight: 4.5 t
Column Formwork
FOR SALE
a used garage mould for the production of prefabricated concrete garages or space cells
Year of construction 2014
ADVANTAGES
Completely hydraulically adjustable garage mould.
Wide range of adjustment options
The following inner dimensions can be adjusted continuously:
width from 2,5m to 4m
length from 6m to 9,8m
Height from 2m to 3m
Garage Mould 2014
Set of Stair Formwork U-shaped for Sale, left and right:
Condition: Very good
Set, left and right formwork, step height 18.33cm
Each side of the staircase has smooth face concrete, except the cast-in side.
Basic formwork for 19 steps. Running width 1,0m Gradient: 17.9/18.33cm Step: 26cm
The Stair Formwork U-shaped is mounted on a base frame. The step plates are made of 6mm folded sheet metal. The soffit is curved and stiffened from 4mm sheet metal.
The side shuttering is provided with screws, including adhesive seal and triangular strip for the soffit.
Casting with flowing concrete is done from above. ( = front side of the stairs).
Staircase Formwork U-shaped
WECKENMANN
Year of manufacture 03/2019
Dead weight: 1600kg
Payload max.: 2,5m3 / 5000kg
Bucket: 1200mm
Max. permissible grain size: 16mm
Spiked roller, power: 1,2/ 1,8kW
Slide opening, power: 0,6kW
400V/50Hz
Concrete spreader bucket WECKENMANN
of the production plant:
Crushing plant
Conveyance/Silos/Dosing/Weighing
Premixer/Reactor
After-mixer
Presses
Hydraulics
Transfer table
Packing + circulation
Heating/Steam
Autoclaves
Lime-Sandstone-Production
Each: Length: 27m, width 3.50m
Steel surface: straight and even
Condition: well maintained
incl.
Heating pipes
Vibrators
Concrete Casting Bed

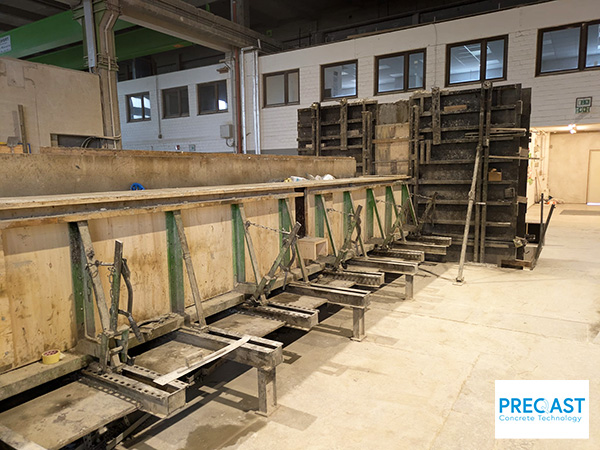

Binder formwork, girder formwork, box girder formwork, bridge girder formwork
Length 30m
Adjustment via mechanical spindle
– 38 pieces vibrators with remote control, including converter and control
Was in use in 3 variants:
-Prestressed, 1 x with wire strand
-Prestressed, with wire strand and cable
-loosely reinforced
-Component height up to 1,80m
-Wing length: 2 x 1,20m
-Web width: 1,90m
BEAM MOULD 30M
Length 25,6m consisting of
2 transportable lengths of 12.800mm each
total width 3400mm, height approx. 1800mm
year of construction 1989
Fully functional
complete with hydraulic unit
without external vibrators
Beam Column Mould
with 3 cylinders
Make NUSPL
Year of manufacture 1999
Upstands 3-sided height adjustable from 12 to 35 cm
Production dimension length: 14.00 m, width: 4.50 m
Plate thickness: 10mm !
Max. Load: 750kg/m2
14 vibrators WACKER
with 3 cylinders
Make NUSPL
Year of manufacture 10/2000
upstands 3-sided height adjustable from 12 to 35 cm
Production dimension length: 11.00 m, width: 4.50 m
Plate thickness: 10mm !
Max. Load: 750kg/m2
Surface in good condition
9 vibrators BRECON
Tilting Table M21409
with 3 cylinders
Make NUSPL
Year of manufacture 2007
Upstands 3-sided height adjustable from 12 to 35 cm
Production dimension length: 16.00 m, width: 4.70 m
Plate thickness: 10mm !
Max. Load: 1000kg/m2
Surface in good condition
16 vibrators WACKER
Tilting Table M21410
Manufacturer: SCHWINGHAMMER,
Year of manufacture: 1995
Formwork elements, consisting of:
– 4 pieces each 10 meters long, each with 5 pieces 250V Bosch external vibrators
– 1 piece with 12 meters length and 6 pieces 250V Bosch external vibrator
The basic width of each formwork section is 2.42 metres.
Each formwork part has a height of 1.58 metres.
Condition: Good
Column Mould 52m
Year of construction = 2010, Manufacturer: Avermann Maschinenfabrik GmbH, Germany, total weight = 15.2 To
Consists of:
– 1 Hydraulic large surface table 15.0m x 4.0m (7.5 kN/m2, payload max. 40 To)
– 1 thermal oil heating register for tilting table
– 10 spanning beams
– 13 Brackets for vibrators
Tilting Table 15x4m A20386
Hydraulic Tilting Table AVERMANN 8 x 3.8m
Manufacturer: Avermann
Dimensions: approx. 8.0 x 3.8m
Casting Area: 8.0 x 3.65m
Sideform at the sub-edge
Incl. Hydraulic Station
No vibrators
Heating pipes installed
TILTING TABLE AVERMANN 8X3.8M
from a circulation line
Length 12950 mm
width 3300 mm (without fixed edge)
Fixed edge is 120 mm from the edge
Load capacity approx. 22 to
Surface with grooves and slight unevenness.
Mould tables
Year of construction: 2007 (very little use)
Manufacturer: Macfab
150mm deep, 127mm wide
The set is self stressing 12 beams wide and consists
of 12 number 6.0m beds including the ends with safety barriers
Features:
Self Stressing unit no need for buried anchored ends.
Modular sections means bed lenght can vary.
Superior finish.
Special concrete cutting equipment is not needed.
A budget solution for pre-stressed flooring.
Size of beams give easy access and lifting onsite.
Floor T-Beam Moulds
Manufacturer: Schwinghammer
Dimensions: approx. 16.00 x 4.10m
Steel sheet 8mm for face concrete
Sideform at the sub-edge
Incl. Hydraulic Station
Incl. 12 pcs external vibrators WACKER
Incl. Heating pipes
Tilting Table SCHWINGHAMMER A20360
Year: 2005
Upgrades: 2007 new gripper, 2012 new X-Drive
Moves shuttering profiles in
X-axis: 7.7m
Y-axis: 4.8m and
Z-axis: 1m
Includes:
– steelframe and driveway
– shuttering profiles magazines
– automatic calibration Station
– control cabinet( UNITECHNIK)
Shuttering Robot WECKENMANN 2005 A9322
Manufacturer: Schwinghammer
Dimensions: approx. 16.00 x 4.30m
Steel sheet 8mm for face concrete
Sideform at the sub-edge
Incl. Hydraulic Station
Incl. 12 pcs external vibrators WACKER
Tilting Table SCHWINGHAMMER A20359
Length: 13.10 x 4,10 m
Casting area: length 12.95 x 3.98 m
Steel sheet
10 pcs external vibrators
Side form left/right height 0.18 m
Side form at turning edge, height 0,18 m
No heating pipes
Hydraulic unit for 2 tables
Tilting table 13.10 x 4.10m
FOR SALE
Concrete Casting Table
Dimensions : 12,5m x 3,5m x 0,55m
Heating pipes
Without vibrator
Indoors until April 2020, stored outdoors since May 2020
Concrete Casting Table fixed 12.5 x 3.5m
Length: 13.40 x 4,08 m
Casting area: length 13.22 x 4.03 m
Steel sheet
10 pcs external vibrators
Side form left/right height 0.18 m
Side form at turning edge height 0,195 m
No heating pipes
Hydraulic unit for 2 tables
Tilting table 13.40 x 4.08m
Mould No.1
Year 1994. Max. Dimension 80 x 100cm, Length 24m (3 parts 1x12m, 2x6m)
Height 1.60m, Width over all 2.40m, 1-sided stroke, Shipping length 1x12m, 2x6m
Included: 12 vibrators
Mould No.2
Year 1995. Max. Dimension 80 x 80cm, Length 20m (3 parts 1x8m, 2x6m)
Height 1.51m, Width over all 2.40m, 1-sided stroke, Shipping length 1x8m, 2x6m
Included: 10 vibrators
Mould No.3
Year 1995. Max. Dimension 80 x 120cm, Length 20m (3 parts 1x8m, 2x6m)
Height 2.20m, Width over all 2.40m, 1-sided stroke, Shipping length 1x8m, 2x6m
Included: 10 vibrators
Column-Beam-Moulds
